Bullo Carbide can produce and supply all kinds of tungsten carbide wear parts,standard or non-standard are all available.Email or call us for what you need.
Tungsten carbide wear parts
Tungsten carbide (also called widia),due to its special physical properties,the potential applications for it is endless. Especially for wear parts.Tungsten carbide is an extremely hard material, almost as hard as diamond. Its high hardness, 700 to 2000 Hv30 (84-94 RA), together with its resistance to extreme temperatures, corrosion and abrasion makes it invaluable in many industrial and engineering applications where it is used to increase component wear life.
Grades option of tungsten carbide wear parts
Usually,we have below grades for your choosing,if you have special needs, please contact us for more details.
Grades | Hardness (HRA) | Density (g/cm3) | T.R.S. (N/mm2) | ISO |
YG6 | ≥91 | 14.9 | ≥1900 | K20 |
YG6A | ≥92 | 14.9 | ≥1810 | K10 |
YG6X | ≥91.5 | 14.9 | ≥1860 | K10 |
YG8 | ≥90 | 14.8 | ≥2080 | K20 |
YG8C | ≥89 | 14.8 | ≥2020 | K25 |
YG10 | ≥88.5 | 14.3 | ≥2300 | K40 |
YG10X | ≥92 | 14.45 | ≥3400 | K40 |
YG15 | ≥87 | 13.9 | ≥2580 | K40 |
YG20 | ≥85.5 | 13.5 | ≥2750 | K40 |
YG20C | ≥84.5 | 13.5 | ≥3000 | K40 |
YS2T | ≥92 | 14.4 | ≥2500 | M20 |
YL10.2 | ≥91.5 | 14.5 | ≥3100 | K20-K30 |
YN6 | ≥88.5 | 14.5 | ≥1800 | |
YN8 | ≥87.5 | 14.3 | ≥2000 |

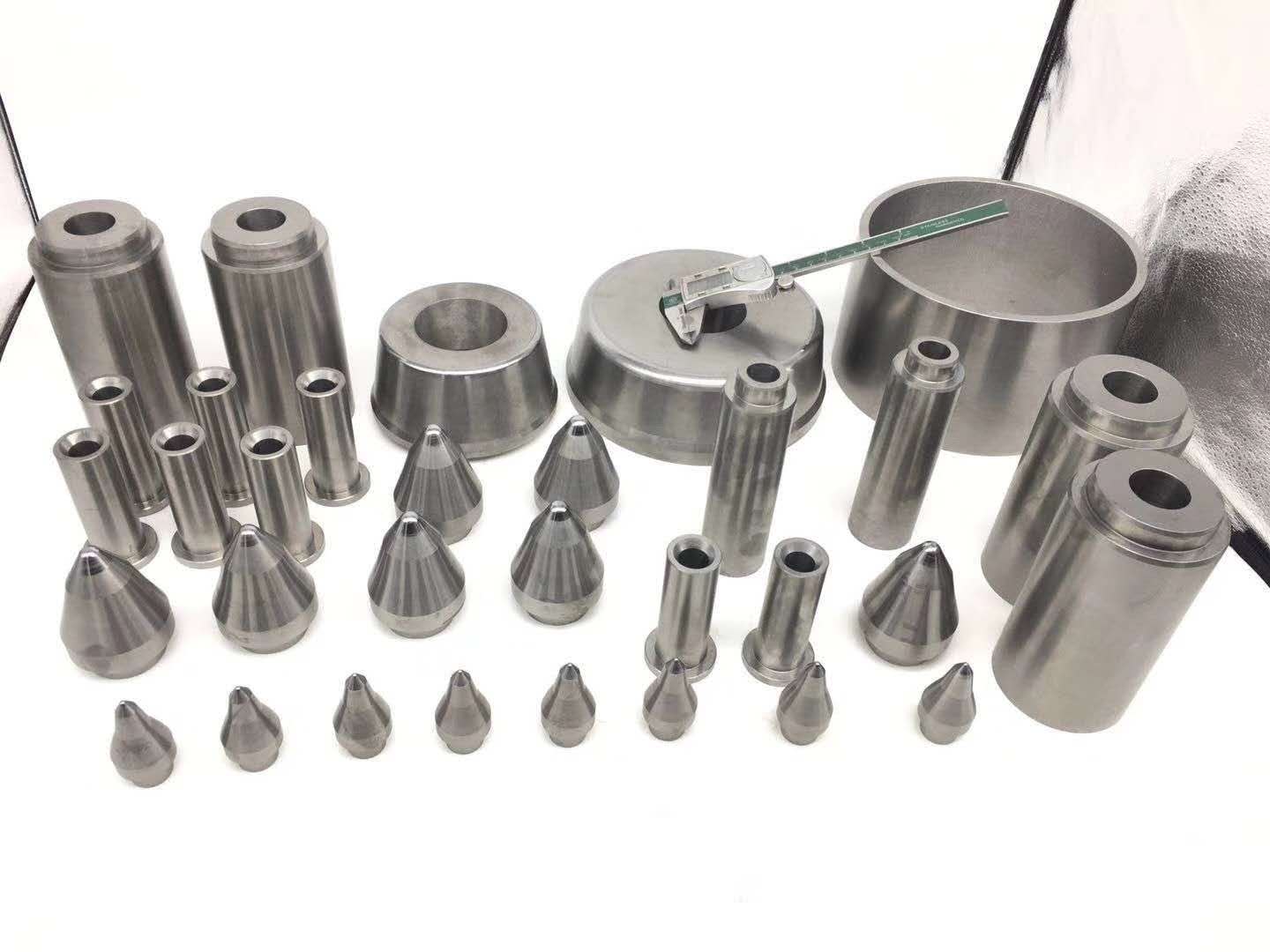

We’ve listed below some of the components prone to wear that we make to order in tungsten carbide (widia). This list is meant to give you an indication of our capabilities and is certainly not exhaustive:
Rotary burr
Saw blades
Rollers
Rods and bars
Strips and plates
Mechanical seals
Grinding Jars and balls
Crusher tips and jaws(jaw crusher plates)
Bushings and sleeves
Rotors and stators
Mushroom head
Nozzles for oil pump
We manufacture components in different shapes and sizes to match our customers’ requirements exactly, whether they need blocks or sheets, cylinders, bearings, tips or teeth.
Don’t hesitate to contact us if you want to explore the option of using a tungsten carbide alternative to replace a specific component. We supply 100% customized parts made to the supplied specifications. In the process, we recommend the appropriate tungsten carbide grade for each application.
