Carbide strips

Carbide strips also called tungsten carbide bars,tungsten carbide square rods,tungsten carbide square bars,it is used as wear parts in industrial for kind of areas.Its size can be standard one or customized one,grounded and ungrounded are both available.

EMAIL

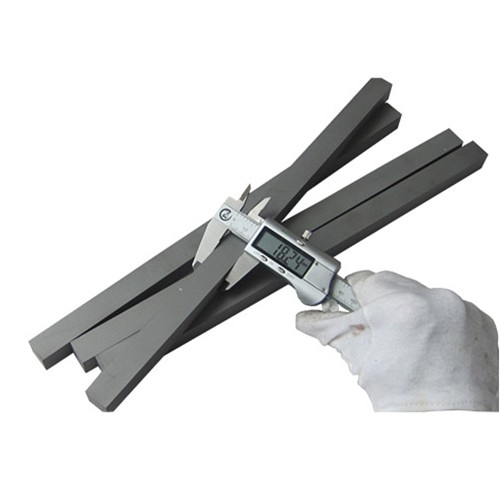

Carbide strips

Carbide strips also called tungsten carbide bars,tungsten carbide square bars,tungsten carbide strips.It is a sintered metallurgical product of powder form.It is manufactured in vacuum or Hydrogen reduction furnaces with refractoty Tungsten material(WC) micron powder as the main ingredient and Cobalt(Co),Nickel(Ni),or Molyddenum(Mo) as the binder.

Carbide strips is known as one kind of tungsten carbide cutting tool.It is available for different grinding geometric parameters and suitable for both cutting materials and nonmetal materials,also it can be applied to coventional,carbide inserts,semi-automatic lathe,automatic lathe and planning machine to work grooves and operate cutting etc.We have carbide strips, tungsten carbide bars in different sizes and grades in stock.

Below is the sizes and grades example for your information,we also can make according to customer's size requests.

Sizes
Rough tolerance(mm)
LengthWidthThickness
330x2x(2-25)+1.0/+0+0.6/+0.3
+0.5/+0.2
330X3X(3-32)+1.0/+0+0.6/+0.3+0.5/+0.2
330x4x(4-35)+1.0/+0+0.6/+0.3+0.5/+0.2
330X5x(5-35)+1.0/+0+0.6/+0.3+0.5/+0.2
330X6x(6-35)+1.0/+0+0.6/+0.3+0.5/+0.2
330x7x7+1.0/+0+0.6/+0.3+0.5/+0.2
330x8x8+1.0/+0+0.6/+0.3+0.5/+0.2
330x10x10+1.0/+0+0.6/+0.3+0.5/+0.2
330x12x12+1.0/+0+0.6/+0.3+0.5/+0.2
330x14x14+1.0/+0+0.6/+0.3+0.5/+0.2

Grades option of our carbide strips

Usually,we have below grades for your choosing,if you have special needs, please contact us for more details.

Grades

Hardness

(HRA)

Density

(g/cm3)

T.R.S.

(N/mm2)

ISO
YG6≥9114.9 ≥1900K20
  YG6A≥9214.9≥1810K10
YG6X≥91.514.9≥1860K10
YG8 ≥9014.8≥2080K20
YG8C≥8914.8≥2020K25
YG10≥88.514.3≥2300K40
YG10X≥9214.45≥3400K40
YG15≥8713.9≥2580K40
YG20≥85.513.5≥2750K40
YG20C≥84.513.5≥3000K40
YS2T≥9214.4≥2500M20
YL10.2≥91.514.5≥3100K20-K30
YN6  ≥88.514.5 ≥1800
YN8  ≥87.514.3≥2000

Carbide strips description

1.The tungsten carbide strips with fine compactness,and the strength and hardness are both comply with ISO standard.

2.The purity of our raw materials reach to 99.95%, which caused it has less Impurity and the physical properties of the strips are more stable.

3.Using spray drying technology, the material is full sealed conditions with high purity nitrogen protection, which effectively reduce the mixing process in the preparation of the possibility of oxygen, caused the material has better purity and not easy to be dirty.

4.300Mpa static press,which can effectively prevent defects and make the strips density more uniform.

5.Using cryogenic treatment technology, which make the internal microstructure of the strip can be improved, the internal stress can be greatly reduced, and then the possibility of cracks in the cutting process is effectively avoided.
